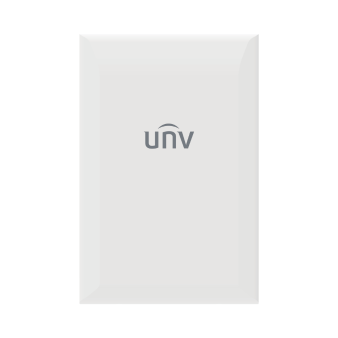

| | WLN-EB5N-IN |
| Hardware Specification |
| Dimensions(mm) | 140x93x43mm |
| Weight(kg) | 0.19kg |
| Installation | Pole mounting, Diameter≤55mm |
| Protection Level | IP65 |
| Antenna Gain | 12dBi |
| Beam Width | H:35°,V:35° |
| Max Power Consumption(W) | 6W |
| Average Power Consumption(W) | 4W |
| CPU | AR9344 |
| DDR \ Memory | 64MB DDR2, 8MB Flash |
| Physical Interface | 2*10/100Mbps |
| Indicator Light | 1*Power Indicator, 1*WLAN Indicator, 1*LAN Indicator, 3* Signal strength indicator
|
| Maximum Transmitted Power | 24dBm |
| Working Temperature | -40℃~65℃ |
| Working Humidity | 5%~95%RH Non-condensing |
| Surge | POE/GE: CM 2KV , DM 1KV |
| ESD Protection | Contact 6KV , Air 8KV |
| Wind Survivability | 134km/h |
| Hardware Specification |
| Power Supply | 12V Passive POE |
| Storage Temperature | -40℃~85℃ |
| Software Specification |
| Protocol | 802.11a/n |
| Frequency | 5180~5320MHz, 5745~5825MHz (China), 5180~5320MHz, 5500~5720MHz, 5745~5825MHz (United States), 5160~5340MHz, 5480~5720MHz, 5745~5865MHz (India), 5160~5340MHz, 5480~5720MHz, 5745~5825MHz (United Arab Emirates), 5745~5805MHz (Indonesia), Supported frequency range: 4920~6100MHz (should depend on the local regulation), * The above frequencies need specific version support
|
| Operating Mode | Station, WDS Station |
| Network Mode | Bridge/ Router |
| Management | Support Web/AC/SNMP |
| Other | Timed restart,Support VLAN,QoS, Watchdog |
| Software Specification |
| Security | WPA2-PSK, Hidden SSID, IP/MAC Filtering |
